rsx-risk Architecture

Risk is the exchange's pre-trade gate. Before any order reaches the matching engine, this process checks that the trader can actually back it — that they hold enough collateral (margin) to cover the new position if the market moves against them. An order that fails the check is rejected here and never touches the book.

That gate is what keeps one over-leveraged trader from running up losses the exchange can't collect — the difference between a bad trade and an insolvent exchange. On a perpetuals venue, every position is leveraged and marked to a live price; without a margin check in front of the book, a single account could take on risk far past its collateral and leave the exchange holding the loss. Risk is the process that says no.

It does this fast — the pre-trade check measures ~110 ns p50 (target <5 µs; see Measured Performance) — and it scales by user: one risk instance per user shard, each shard owning a range of users and holding their positions and margin in RAM. Beyond the gate, the same process tracks positions, settles funding, liquidates underwater accounts, and runs the insurance fund, with single-writer leader election via an eager warm-standby protocol gated by a Postgres advisory lock (warm-catchup → caught-up → non-blocking acquire). Canonical full-tile arrangement per specs/2/45-tiles.md §3.2.

Specs: specs/2/28-risk.md, specs/2/45-tiles.md §3.2.

Trust Boundary

Risk is the margin and solvency authority — the trusted enforcement point for whether an order is allowed to trade. The concern is split by design: the gateway owns authentication and structural validation (JWT, TLS, well-formedness — is this a real, syntactically valid order from a real client?), and risk owns the economic question (does this user have the margin and position headroom for it?). The matching engine downstream trusts risk's decision and does not re-check margin.

So "the matching engine doesn't validate input" is not a hole: the validation happened here first. Risk is where an order is proven solvent before it can rest in the book. This single-owner split is the repo trust-boundary policy (CLAUDE.md; specs/2/47-validation-edge-cases.md); the pre-trade check (PortfolioMargin::check_order, below) is its implementation.

Module Layout

File	Purpose
main.rs	Binary: warm-catchup + promotion state machine, ring construction, casting pump, lease watch
shard.rs	RiskShard — core state machine, process_order(), fill apply
types.rs	FillEvent, OrderRequest, BboUpdate, RejectReason
account.rs	Account struct and balance operations
position.rs	Position struct, fill application, long/short flip
margin.rs	PortfolioMargin, check_order() pre-trade gate
price.rs	IndexPrice, mark price updates
funding.rs	Funding rate computation and payment application
liquidation.rs	LiquidationEngine, detection and order generation
insurance.rs	InsuranceFund, socialized loss
persist.rs	Async Postgres persistence via SPSC ring (PersistEvent)
replay.rs	Cold start from Postgres + WAL replay
schema.rs	Postgres table creation
lease.rs	AdvisoryLease — Postgres advisory lock for single-writer
rings.rs	ShardRings, OrderResponse, MarkPriceUpdate
config.rs	ShardConfig, ReplicationConfig
risk_utils.rs	Fee calculation

Tile Shape (Canonical Full Tile)

Per specs/2/45-tiles.md §3.2, risk is the canonical tile shape: one pinned thread plus a tokio sidecar for blocking Postgres I/O, with seven SPSC rings (rtrb) as the only intra-process IPC.

Rings (all in main.rs::run_main)

Ring	Capacity	Direction
PersistEvent	8192	shard → persist sidecar
OrderResponse	2048	shard → casting sender
OrderRequest (accepted)	2048	shard → casting sender (to ME)

PersistEvent is sized largest because Postgres write-behind absorbs bursts of fills and position updates. Input rings were removed: the casting receive pump and the shard share one pinned thread, so the pump calls shard.process_* directly (an input ring would be a redundant per-message copy). Only shard output crosses a ring boundary.

Threading

• Pinned core (RSX_RISK_CORE_ID, main.rs:291-303): runs RiskShard plus the casting receive pump. Busy-spin reactor, no blocking allowed.
• Persist sidecar (std::thread::spawn, main.rs:260): separate tokio::runtime::Builder::new_current_thread runtime that drains PersistEvent via tokio_postgres. Blocking PG write-behind cannot live on the pinned core, hence the dedicated thread.
• Lease thread: renews the advisory lock on its own tokio runtime; on loss it flips an AtomicBool the hot loop watches, triggering a clean run_main re-entry.

Main Loop Priority

run_main() busy-spins on the pinned core in priority order:

loop {
    1. Fills from all MEs        (highest — RECORD_FILL via casting)
    2. Order requests            (gateway → primary OrderRequest ring)
    3. Mark price updates        (RECORD_MARK_PRICE, main.rs:685)
    4. BBO updates               (trigger margin recalc)
    5. Funding settlement        (every 8h interval)
    6. Liquidation processing    (if triggered by fill)
    7. Lease health check        (AtomicBool set by lease thread)
}

Pre-Trade Risk Check

PortfolioMargin::check_order (margin.rs:98) is the gate:

1. Bypass for liquidation orders: order.is_liquidation → Ok(0) (margin.rs:107).
2. Bypass for reduce-only: order.reduce_only → Ok(0) (margin.rs:110). Reduce-only orders clamp downstream in the matching path against the user's current position.
3. Normal path: recalc portfolio margin with current mark prices, compute order_im = notional * initial_margin_rate, reject if available < order_im + worst_case_taker_fee.
4. Freeze: account.frozen_margin += order_im.
5. Route: forward to ME via casting/UDP.

On ORDER_DONE the frozen amount is released. Frozen state is in-memory only (not persisted; lost on restart, rebuilt from open-order replay).

Position Tracking

FxHashMap<(user_id, symbol_id), Position> in memory:

struct Position {
    long_qty: i64,
    short_qty: i64,
    long_entry_cost: i64,   // sum(price * qty)
    short_entry_cost: i64,
    realized_pnl: i64,
    last_fill_seq: u64,
    version: u64,           // CAS for PG upsert
}

Position flip (long → short): close old at fill price (realize PnL), open new with entry = fill price. Two-step in apply_fill.

Margin Calculation

equity         = collateral + sum(unrealized_pnl)
initial_margin = sum(|net_qty| * mark_price * im_rate)
maint_margin   = sum(|net_qty| * mark_price * mm_rate)
available      = equity - initial_margin - frozen_margin

Recalculated on every price tick for users with exposure in the updated symbol. Exposure index (Vec<Vec<u32>>) maps symbol → users.

Funding

Every 8 hours (UTC 00:00 / 08:00 / 16:00):

premium         = (mark - index) / index
funding_payment = position_qty * mark * rate

Long pays short when rate > 0. Invariant #9: sum of all funding payments across all users per symbol per interval is zero. Idempotency key: interval_id = epoch_secs / 28800.

Liquidation

When equity < maint_margin:

1. Enqueue user (liquidation.enqueue).
2. Each round: close largest position with reduce_only + is_liquidation market order (bypasses pre-trade margin per margin.rs:107-112).
3. Escalation: increase slippage tolerance per round (base_slip_bps → max_slip_bps, max_rounds).
4. Insurance fund absorbs losses past bankruptcy price.
5. Socialized loss if insurance exhausted.

Leader Election & Failover

Every risk-shard process is an identical warm candidate main. Boot, standby, and promotion are one path: a process loads Postgres, then warms — it applies the live main's authoritative stream into its own shard state — and only goes LIVE once it is caught up AND wins the advisory lock. There is no separate "cold main boot"; promotion is always warm.

main() calls run_main in a loop. run_main is a two-state machine (NodeState):

enum NodeState { WarmCatchup, Live }

run_main:
  connect Postgres (NO advisory lock yet)
  → run_migrations
  → load_from_postgres           (accounts, positions, tips)
  → replay_from_wal(tip+1)       (fold boot WAL into shard)
  ── NodeState::WarmCatchup ──────────────────────────────
  → consume ME WAL replication stream + mark stream,
    apply each record via replay::apply_record (NO persist,
    NO gateway ingress, NO egress, NO liquidation tick)
  → on caught_up: pg_try_advisory_lock (NON-BLOCKING)
       false → stay warm, keep applying, retry next poll
       true  → final-drain ME stream, transition to LIVE
  ── NodeState::Live ─────────────────────────────────────
  → attach persist producer + spawn persist sidecar
  → spawn lease-renewal thread
  → bind gateway receiver + senders (ingress + egress)
  → live loop: apply ME records AND forward to GW,
    process gateway orders, run liquidation tick

What the warm replica consumes. The SAME source the live main uses for FAULTED recovery: ME's WAL replication server at RSX_ME_REPLICATION_ADDR. No separate risk WAL is introduced. Records are applied through replay::apply_record — the exact function replay_from_wal uses — so warm-apply, boot-replay, and FAULTED-replay share one state-apply path. The mark cast stream (RSX_RISK_MARK_CAST_ADDR) is drained into update_mark in both warm and live modes.

ME topology. The live main binds ONE CastReceiver for all MEs (single recv addr) and replays a single stream_id (the first/primary ME's symbol_id) for FAULTED recovery. The warm replica matches that topology exactly: ONE ReplicationConsumer against RSX_ME_REPLICATION_ADDR with that same stream_id. (If the main is ever changed to per-symbol ME receivers, the warm path must grow to one consumer per ME stream to match.)

Caught-up detection. rsx-cast's ReplicationService emits RECORD_CAUGHT_UP { live_seq } after draining its current WAL. The warm loop sets caught_up ⟺ saw RECORD_CAUGHT_UP(live_seq=T) AND applied_seq >= T. The consumer uses a per-node tip file, so a disconnect/error clears caught-up implicitly (re-derived next iteration) and reconnect resumes from the persisted tip+1. CAUGHT_UP carries no seq so it never advances the tip.

Promotion (strict, catch-up-only) and the no-double-main argument. pg_try_advisory_lock is called ONLY when caught_up. The advisory lock — not catch-up — remains the SOLE single-main fence (invariant #10); catch-up only gates when try_acquire is called, it never replaces the lock. So there is no double-main window: two nodes can both be caught up, but Postgres grants the lock to exactly one. The loser stays warm and retries try_acquire every lease_poll_interval_ms. There is NO cold-promote fallback: a node that never catches up never attempts the lock (strict availability tradeoff — see CRASH-SCENARIOS.md). On winning the lock the node does a FINAL DRAIN (apply any ME records written between the last CAUGHT_UP and the lock grant) so the live loop starts with no gap, then transitions to LIVE with the already-warm shard — no discard, no full rebuild.

Re-entry on lease loss. The lease thread renews the lock on its own tokio runtime; on loss it sets an AtomicBool the live loop polls each tick. On loss the loop tears down the persist sidecar and lease thread (each owns a PG connection) and returns MainTransition::Demote. main() calls run_main again, which re-enters WARM CATCHUP (step 2) and re-tries the non-blocking lock — this process becomes a warm standby again. run_main is re-enterable: it owns its PG client, catchup consumer, persist worker, lease thread, and sockets, and tears them all down before returning, so a Demote → re-acquire cycle leaks nothing. On a crash (error return) main() applies the restart-backoff budget instead.

Advisory Lock (Invariant #10)

AdvisoryLease (lease.rs) wraps pg_try_advisory_lock (promotion gate, non-blocking), the pg_locks self-check (renew), and pg_advisory_unlock (release) on shard_id. Postgres guarantees at most one holder per shard, so at most one main per shard. Catch-up never bypasses this — it only decides when to call try_acquire.

Data loss bound: 10ms (one WAL flush interval) on a single crash, recovered by WAL replay from the persisted tip. Async replication adds a bounded staleness window on promotion (the main can apply record K and die before the replication server streams K to standbys); see CRASH-SCENARIOS.md.

Persistence

Write-behind via the PersistEvent ring → persist sidecar thread → tokio_postgres:

• Positions: batched UPSERT (advisory lock = single writer)
• Fills: COPY binary (bulk insert)
• Tips: batched UPSERT per (instance_id, symbol_id)
• synchronous_commit = on
• Backpressure: PG lag > 100ms stalls the hot path

Deduplication

• Fills: seq <= tips[symbol_id] → skip (idempotent replay)
• Tips: monotonic, never decrease (Invariant #5)
• PG positions: version CAS on UPSERT (defensive)

Performance Targets

Path	Target
Fill processing	<1us
Pre-trade check	<5us
Per-tick margin recalc	<10us/user
BBO → index price	<100ns
Postgres flush	every 10ms
Failover detection	~500ms

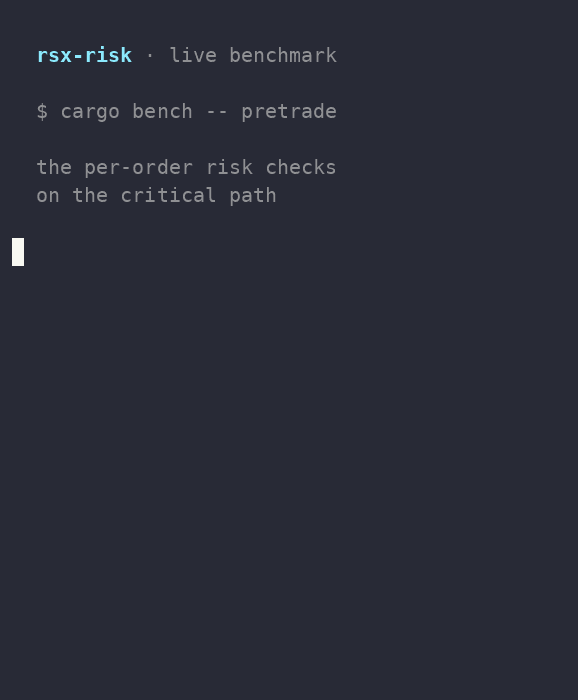

Measured Performance

In-process microbenchmarks driving the real RiskShard, single shard/core, no UDP/WS — compute floors, well inside the targets above. Sources: reports/20260530_component-benches.md and reports/20260530_risk-capacity-flood.md (cargo bench -p rsx-risk).

Path	p50	Note
pre-trade check (check_order, depth 0)	~110 ns	target <5 µs — ~45× headroom
pre-trade check, depth 8 / 64 / 512	120 / 181 / 841 ns	falls with the user's resting-order depth (frozen_for_user sums open orders)
reject NotInShard	30 ns	out-of-shard fast reject
reject InsufMargin	51 ns	margin reject
apply_fill	3.6 ns
BBO → index price	~5 ns	target <100 ns
exposure lookup	1.6 ns	symbol → users index
fill, hot users	250 ns

Capacity (10k users / 16 symbols / 64 hot): ~10.2M order-accepts/s at depth 0, ~5.6M at depth 64. Under open-loop flood the engine stalls, never drops — persist backpressure paces the hot path rather than losing fills. Engine-only floors (exclude casting recv/decode/UDP, a single shard/core); production runs many shards in parallel. Re-run on a quiet box for a citable baseline.

Architectural Decisions

Runtime: canonical full tile + tokio persist sidecar. Risk is the reference example of the full tile arrangement (per ../specs/2/45-tiles.md §3.2). The hot thread is pinned, busy-spinning, draining seven SPSC rings: fills, orders, mark prices, BBOs (consumers); order responses, accepteds (producers); plus one PersistEvent ring to the sidecar.

The persist sidecar is a separate OS thread running a single-threaded tokio runtime so blocking tokio_postgres writes — accounts, positions, fills, tips — cannot stall the pinned core. The ring boundary is the chokepoint: full ring stalls the hot path per the WAL backpressure rule (see ../notes/tiles.md).

Lock Order

None. The hot-path tile is single-threaded (one pinned thread owns RiskShard); cross-thread state handoff is exclusively through SPSC rings. The persist sidecar uses its own Postgres client — no shared locks between tiles. Only postgres-side row/advisory locks exist (see lease.rs: AdvisoryLease), held solely by the main-thread tokio runtime, never by the pinned tile. Adding a Mutex/RwLock/DashMap requires documenting the acquisition order here.

20260530 — component microbenches (the floors)

What: isolated in-process component latencies (no UDP/WS) — the hard floors each layer adds. Criterion. Sources: rsx-matching/benches, rsx-risk/benches, rsx-cast/benches, rsx-book/benches.

Numbers

• ME in-process match floor: ~210 ns p50 (me_process_order_full_path: dedup + match + WAL-append, no fsync).
• Risk margin: pretrade check ~110 ns; apply_fill ~3.6 ns; BBO→index ~5 ns; exposure lookup ~1.6 ns.
• Casting loopback RTT (A→B→A, fill echo, cmp_rtt_fill_echo): ~7.6 µs → one one-way casting hop ≈ 3.8 µs.
• Deep-book bench (rsx-book/benches/deep_book_bench.rs, fat-tailed Student-t seed): match ~52 ns FLAT at 100k / 1m / 10m resting (depth-independent — O(consumed), not O(resting)); insert ~190–215 ns flat. OrderSlot = 128 B, slab u32-indexed → RAM-bound (10M ≈ 1.3 GB).

Conclusion

The internal compute floors are ns–µs. A full GW→ME→GW round-trip floor ≈ 4 casting hops (~15 µs) + ~330 ns compute — i.e. transport-bound, not compute-bound. Matching scales to 10M resting orders at the same ~52 ns. The gap between this floor and the measured ~11 ms e2e (see 20260530_e2e-ws-probe.md) is gateway egress scheduling, not the engine.

Caveats

In-process, no kernel/UDP/WS; criterion steady-state (p50). The casting RTT is loopback. These are floors — production adds transport + scheduling.

20260530 — risk engine capacity + flood

What: risk-engine CPU ceiling + degradation under flood, driving the REAL RiskShard::process_order/process_fill (in-process, single shard, no UDP/WS). Source: rsx-risk/benches/{risk_throughput_bench,risk_flood_bench}.rs. Oracle-gated.

Capacity (service ceiling, 10k users / 16 symbols / 64 hot)

workload	ops/s	p50 ns	p99 ns
order-accept depth=0	10.2M	101	171
order-accept depth=8	9.30M	120	180
order-accept depth=64	5.57M	181	271
order-accept depth=512	1.16M	841	1233
reject NotInShard	97.6M	30	31
reject InsufMargin	27.2M	51	80
fill hot-users	3.89M	250	410
mixed 4ord:1fill depth=8	4.38M	200	461

Accept throughput falls with resting-order depth (frozen_for_user sums the user's open orders per check) — the main scaling variable.

Flood (open-loop, latency vs scheduled-due)

Knee at ~8M orders/s offered: achieved/offered drops to ~76%, scheduled-latency p99 explodes, backlog grows. Below ~5M: p50 ~0.15 µs, p99 < 100 µs. Persist backpressure: the engine STALLS, never drops — achieved fills track drain_rate/~6 (1M drain → 91k fills, 300k → 27k); fast/unthrottled caps ~115k fills/s (cross-core SPSC handoff ceiling in-harness).

Caveats

Engine-only (excludes casting recv/decode/UDP — gateway's concern); single shard/core (prod runs many shards parallel); flood-harness ceiling (~6M) is below the pure-engine ceiling (pacing+timing per op); default cardinality is warm-cache.
